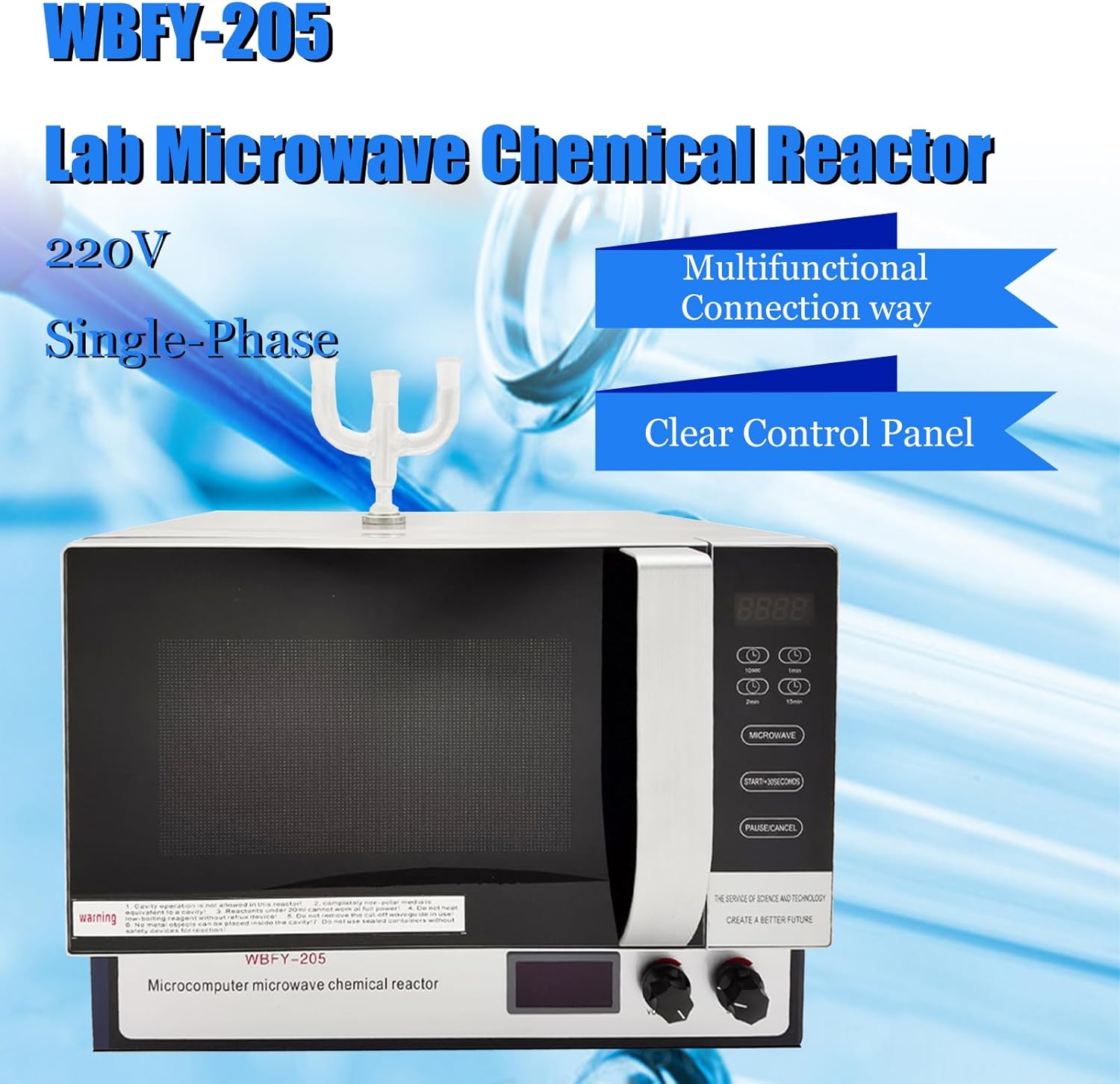

WBFY-205 Lab Microwave Chemical Reactor WBFY-205 Lab Microwave Synthesis Extractor Laboratory Chemical Reactor Continuous Laboratory Radiation Oven, AC220V Single-Phase

Product Parameters Voltage: AC220V, single-phase Maximum input current: 7.8A Rated power input: 1350W Rated power output: 800W Microwave operating frequency: 2450MHz Microwave output mode: Continuous wave Stirring capacity: 1.7-16.9fl.oz (50-500ml) Motor power: 30W Stirring speed: 0-1800 rpm infinitely Stirring temperature: Room temperature~250℃ (482℉) Inner chamber dimension: 12.8*11.2*7.9" (32.5×28.5×20cm) Inner chamber material: Stainless steel Ambient temperature: 0~50℃ (0-122℉) Relative humidity: ＜85%RH Reactor size: 19.7*16.5*14.8" (50×42×37.5cm) Package size: 23.6*18.5*22.4" (60×47×57cm) Net weight / Gross weight: 42.5lbs(19.3kg) / 63.7lbs(28.9kg) One package includes Lab Microwave Chemical Reactor *1 Accessory Kit *1 Please note that 1. Please tighten the installed cut-off waveguide to avoid loosening 2. Generally use three long screws to adjust the height, and do not touch the pivot at the bottom of the chamber after placing the object 3. Placement of microwave chemical reactor: a. Working environment: Inside the pass-through cabinet is preferred. Must be placed horizontally. The top reflux device or liquid filling device should be fixed with an experimental iron frame. No other objects should be placed within 15cm of the back vent. Do not allow to remove the furnace feet placed. b. Power supply: The ideal power supply is a regulated power supply. If there is no regulated power supply should have a dedicated power supply line, not with other large equipment with a common line. The line must be well grounded. Please use a fuse rated 8A or higher.

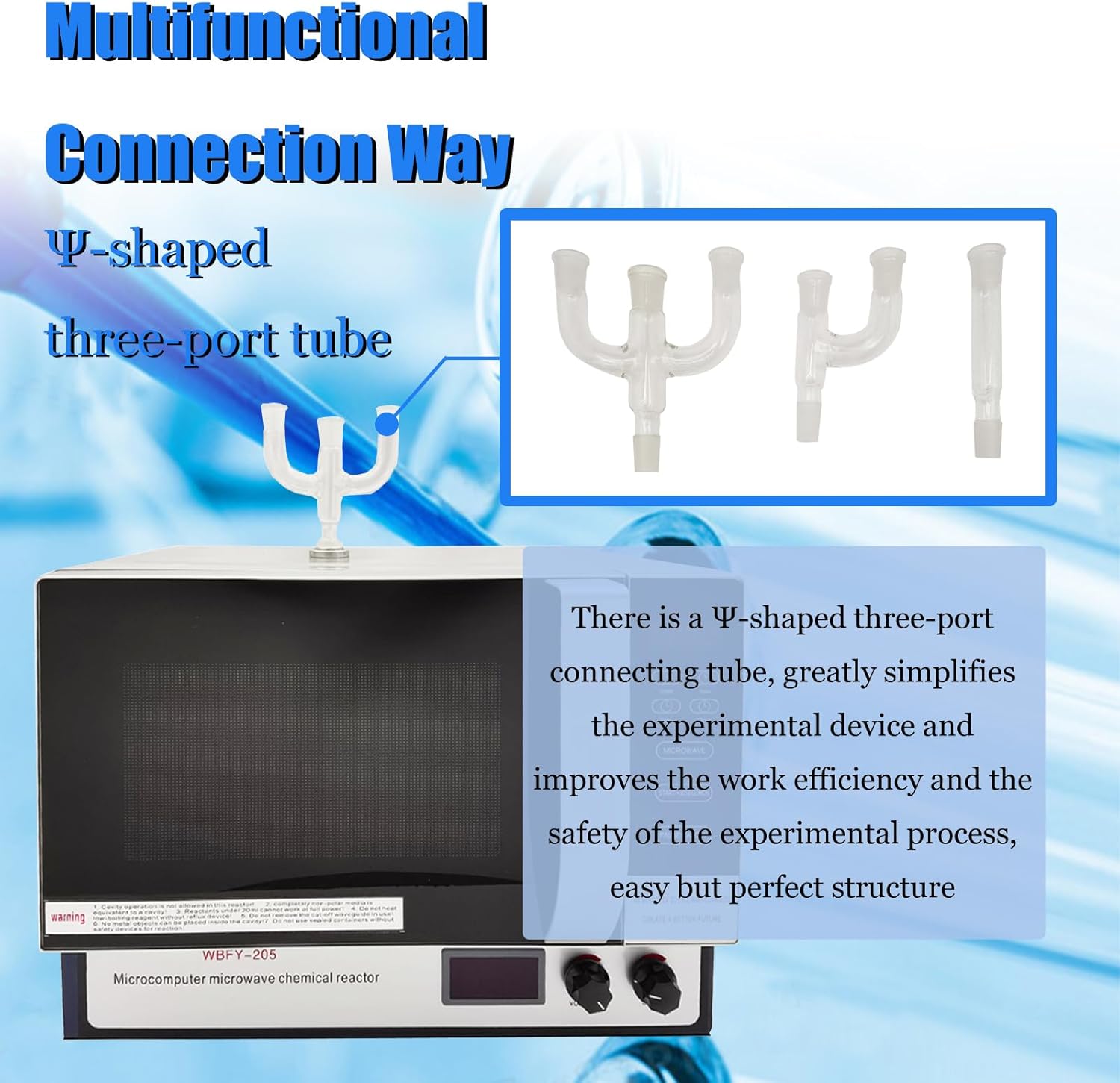

• Multifunctional Connection Way: There is a Ψ-shaped three-port connecting tube installed on the top of the reactor, which not only simplifies the experimental device, but also improves the work efficiency and the safety of the experimental process through its multi-functional connection mode and superior sealing, easy but perfect structure
• Clear Control Panel: Each extractor comes with a control panel, with four time setting buttons (10sec, 1min, 2min, 10min) and three function buttons (microwave, start / +30 seconds, pause / cancel), to set working time, temperature and power, clear data as well as simple and convenient operation
• Immediately Stop Design: The inner chamber size is 12.8*11.2*7.9" (32.5×28.5×20cm), when the door of the microwave reactor is opened, the working process will be immediately stopped, so that it is convenient to sampling or add reagents during the reaction process, making sure to get the desired reaction effect as needed
• Longer Service Life: Made of 304 stainless steel, the inner liner is high temperature-resistant, easy cleaning, not easily deformed and damaged, besides, the machine is designed with air vent, to effectively discharge smoke and steam generated in the work, stable reaction workspace and long-lasting service life
• Working Principle: As a high-frequency wave, microwave itself does not produce heat, can not be used as a kind of energy, but the WBFY-205 lab microwave chemical reactor can convert electrical energy into microwave, with an oscillation frequency of 2450MHz per second through the medium, when appropriate, high-frequency oscillation will occur, then energy will be stored in the medium, suitable to synthesize substances that are difficult to produce by conventional methods
