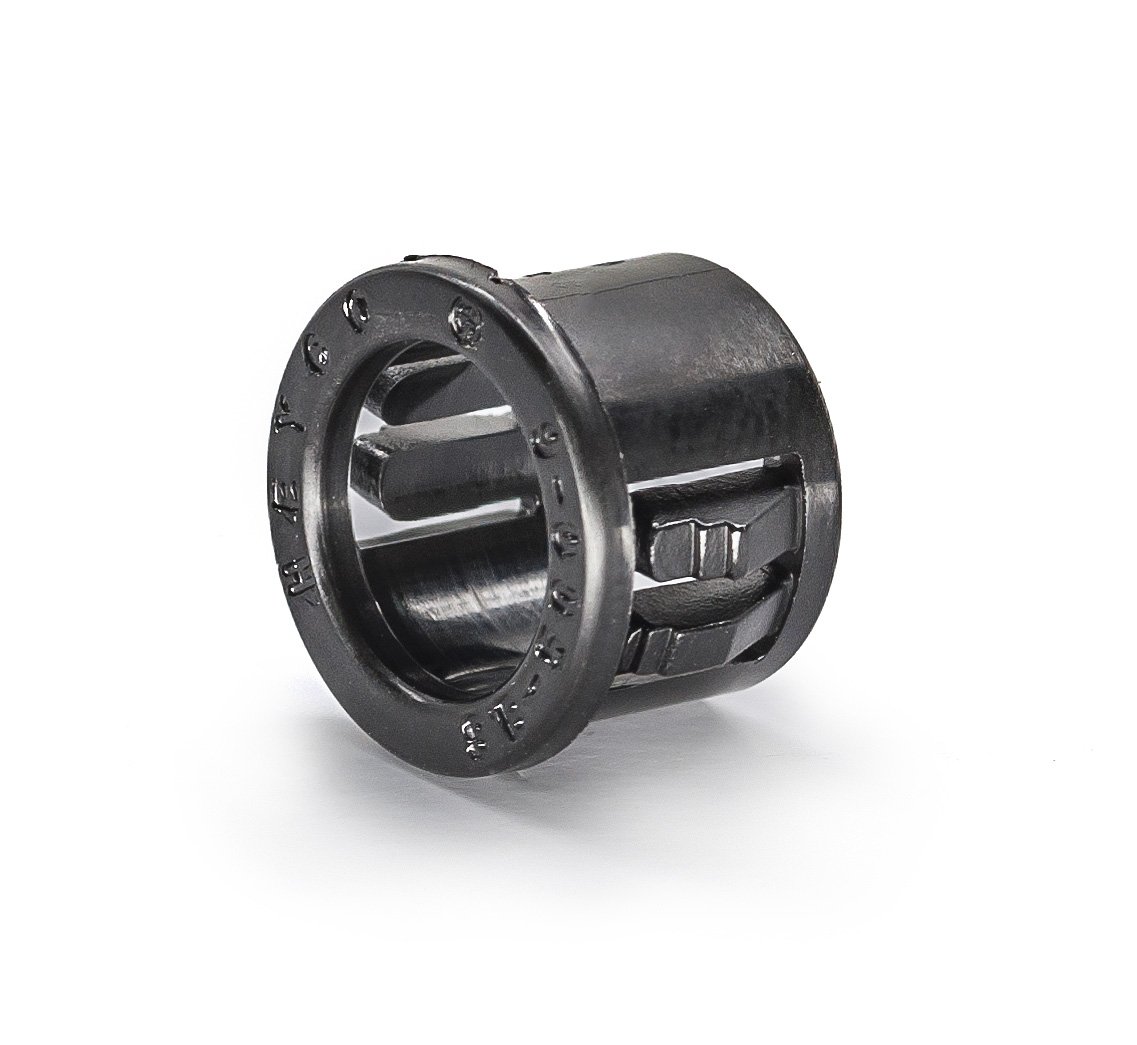

HEYCO #2053 SB 500-6 BLACK SNAP BUSHING, Cable Mounting & Accessories, UL Recognized Component (Bag of 100)
Product details
| Management number | 247655899 | Release Date | 2026/08/16 | List Price | US$5.42 | Model Number | 247655899 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1/2'' HEYCO SNAP BUSHING, UL and CSA Certified Component Multiple Locking Steps for Panel Thickness up to 1/8'' Packaged bag of 100 pcs. PRODUCT FEATURES: Convert raw-edged holes to smooth, neat, insulated holes. Insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines. Locking fingers snap into holes with fingertip pressure. Withstand a push back force of 35 pounds. Temperature Range -0.4°F (-18°C) to 221°F (105°C) Tough, UL 94V-2 Flame Retardant Nylon 6/6 will not crack or break, even when applied to maximum wire combinations under extreme pressure PRODUCT DIMENSIONS: Overall Dimensions: 0.57'' (14.48mm) D x 0.41'' (10.41mm) H Inside Diameter: 0.39'' (9.91mm) Head Diameter: 0.57'' (14.48mm) Mounting Hole Dia: 0.50'' (12.70mm) CERTIFICATIONS: UL Recognized under the Component Program of Underwriters' Laboratory File E15331 CSA Certified by the Canadian Standards Association File 8919 AMAZON Protected Money-Back Satisfaction Guaranteed
- Heyco Snap Bushings Convert raw-edged holes to smooth, neat, insulated holes.
- Insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines.
- Locking fingers snap into holes with fingertip pressure.
- Locking fingers in fractional increments up to the maximum panel thickness
- UL Listed and CSA Certified Component
| UPC | 710308401712 |
|---|---|
| ASIN | B01LPBST9G |
| Color | Black |
| Model | 2053 SB 500-6 |
| Terminal | Snap-in Terminal |
| Stud Size | 1/2 inch |
| Brand Name | HEYCO |
| Unit Count | 100 Count |
| Part Number | 2053 SB 500-6 |
| Manufacturer | HEYCO |
| Material Type | Tough, UL 94V-2 Flame Retardant Nylon 6/6 |
| Connector Type | Snap |
| Maximum Voltage | 94 volts |
| Number of Items | 100 |
| Connector Gender | Male |
| Contact Material | Beryllium Copper |
| Insulation Material Type | Nylon |
| Item Dimensions L x W x H | 0.41"L x 0.41"W x 0.41"H |
