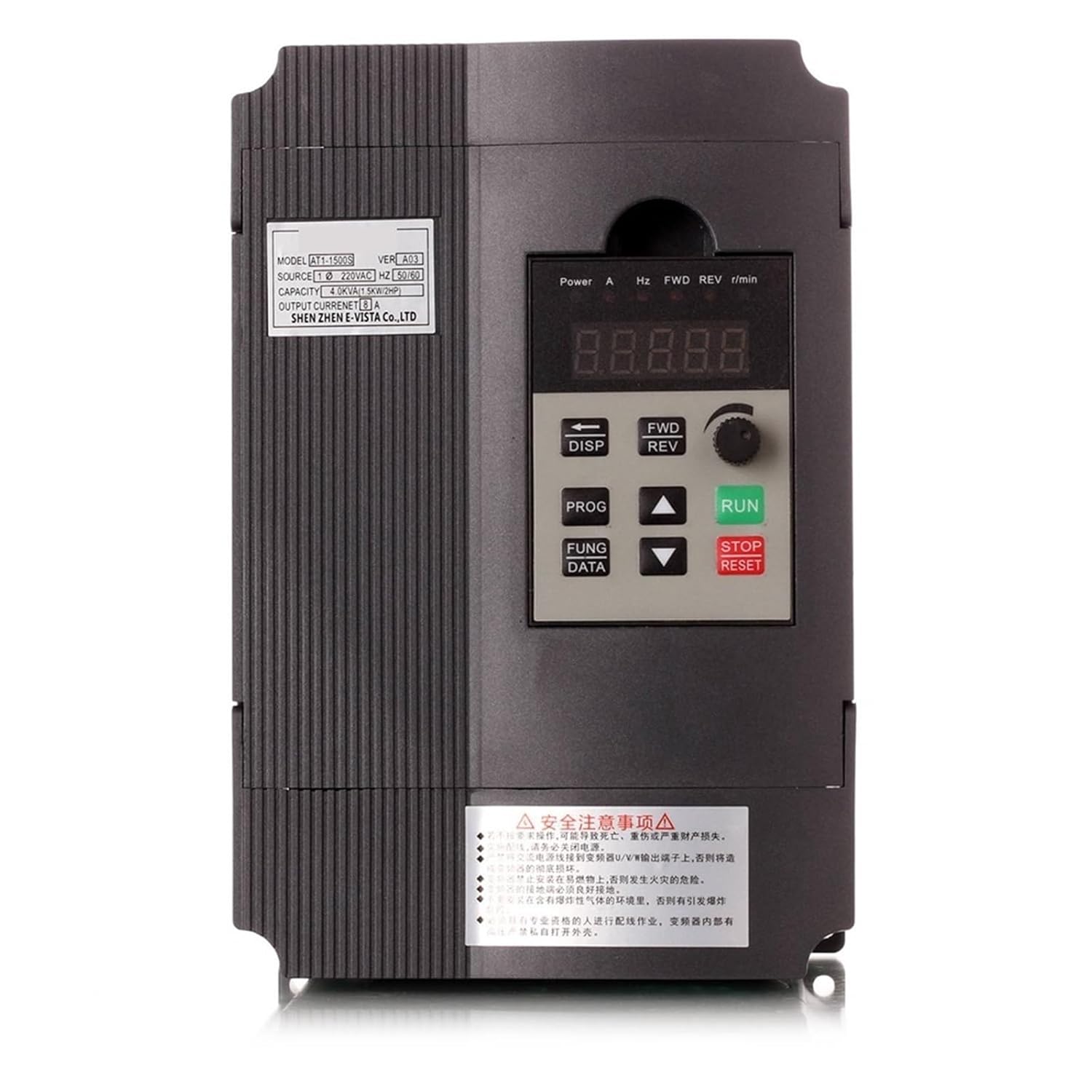

Frequency Converter, VFD Inverter 1.5KW/2.2KW/4KW Mini Frequency Converter 3P 220 Or Triple 380V Output with Small(4KW (White))
Product details
| Management number | 221445447 | Release Date | 2026/05/03 | List Price | US$197.12 | Model Number | 221445447 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Output Power:1500W 1000w 750W 500W 400WType:AC-DC-ACOutput Voltage:220 3-phasesInput Voltage:220 singleINPUT:AC220 SingleOUTPUT:AC220 Three-phases for ConnectionAC 380V Three-phases forStar ConnectionOtherwise the torque may not be enoughNotice:it isUnable to connect the excitation motor, can damage the inverter, can only connect asynchronous motor,Like Hand-held Electric Drill, chainsaw and other motor is mostly excitation motorIf motor need high speed rotate,like spindle motor,you should set the inverter parameter as below:P001=400,P003=200,P006=400So it is ok001 = 400, 003 = 200, P006 = 400this is set to MAX 400hzif you want to set MAX 70hz,P001=70,P003=35 ,P006=70This model of inverter factory default MAX frequency is 50HZ
- Output Current:8A
- Output Frequency:0.1-400HZ
- Weight:1.50KG
- Size:20*13*10cm
- Output Type:triple
| Item Weight | 1.1 pounds |
|---|---|
| Manufacturer | OKANEN |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
