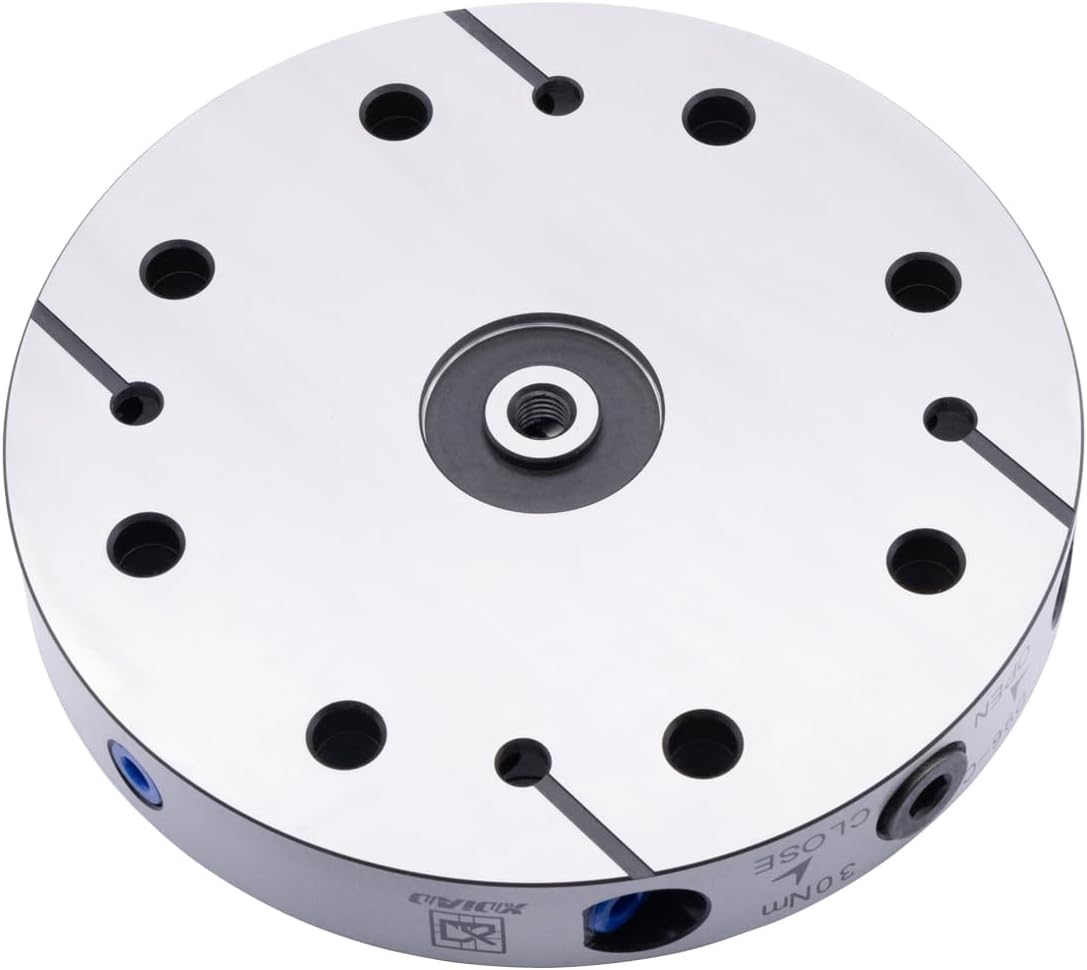

D96-C Round CNC Quick-Change Plate, Ø180mm (7.09") Dia x 27mm (1.06") H, ±0.005mm Repeatability, 20kN Force, 96x96mm (3.78x3.78") Holes, 58-62 HRC
Product details
| Management number | 220368029 | Release Date | 2026/05/03 | List Price | US$161.60 | Model Number | 220368029 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 1. 🔍 Large Precision for Heavy-Duty CNC & Automation ±0.005mm (±0.0002") repeatability and ±0.01mm (±0.0004") at 45°/90° rotations—perfect for large mold making, aerospace parts, and multi-axis machining.
- 2. ⚙️ Oversized 96x96mm (3.78x3.78") Hole Grid Jig-ground holes on 58-62 HRC alloy steel ensure <0.005mm positional accuracy—supports heavy fixtures and multi-tool setups.
- 3. 💪 20kN (4,496 lbf) Clamping Force 4 pull studs with 30Nm (25.8 lb-ft) torque lock large tools securely—stable even at 20,000 RPM.
- 4. ⚡ Rapid 360° Tool Swaps Ø180mm (7.09") round design allows full rotation for complex jobs. Change tools in 3 seconds—cut downtime by 65%.
- 5. 🛡️ Low-Profile & Coolant-Resistant 27mm (1.06") slim height maximizes Z-axis space. Hard-anodized finish withstands chips, oil, and coolant.
| UPC | 743267898477 |
|---|---|
| Color | Silver |
| Brand Name | XinDianPAF |
| Style Name | D96-C |
| Unit Count | 1.0 Count |
| Item Weight | 13.01 Pounds |
| Manufacturer | XinDianPAF |
| Model Number | D96-C |
| Material Type | Alloy Steel |
| Item Dimensions | 7.09 x 7.09 x 1.06 inches |
